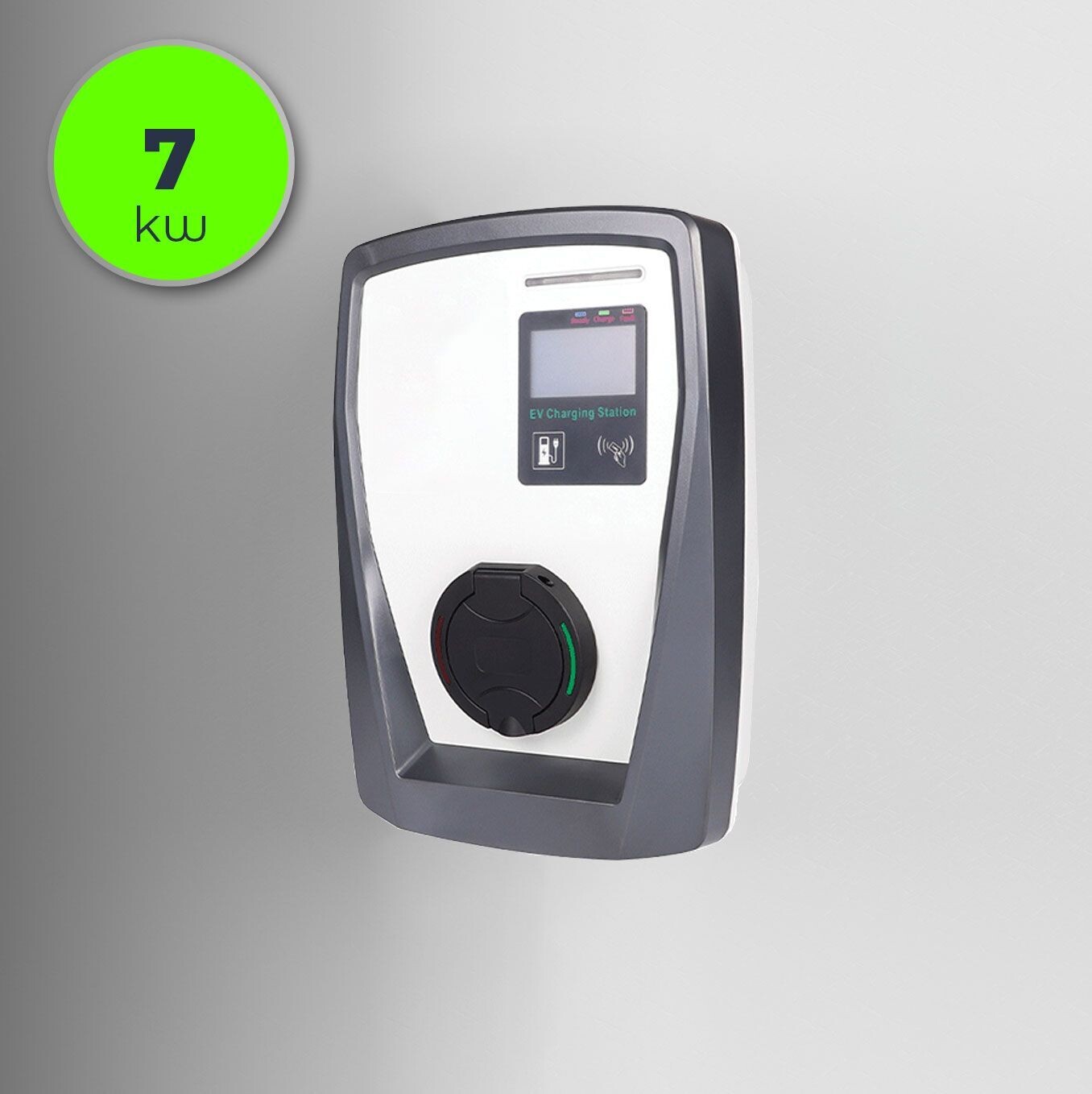

TRIBUS Single 7kW is a popular and best selling charger for Residential or Apartment Applications.
It is also suitable for motels, carparks and small business applications as an entry level commercial charger.
This high performance charger is easy to use with a modular design, simple user interface and user supplied lead.
Electric vehicles charge significantly faster at a wallbox than when plugged into a regular wall socket. Where wall-mounted is not an option, a stand-alone box or a post or pillar type of charging station can be used.
Perfect for residential applications
Integrated billing for multi-residential, motels, carparks and small businesses
Simple Interface
Easy to use
Compatible with all EVs
Easy to install
User Supplied Cable
ELECTRICAL SPECIFICATION
Charging Capacity:
7kW
Charge Mode:
Mode 3 charging
Connectors:
One (1)
Connector Type:
Type 2 Socket
Fixed Cable Type:
NA
Fixed Cable Length:
NA
Connection Capacity:
1 Phase (32A)
Metering:
Australian Approved Trade NMI KWH Meter
Smart Charging:
Inbuilt load management
SAFETY & CERTIFICATION
Ground Fault Detection:
30 mA AC / 6 mA DC CCID
Housing Fire Rating:?
Operating Temperature: -
25°C to +40°C
Operating Humidity:
3% to 95%
Enclosure Ratings:
IP54 (Indoor Outdoor), IK08
CE Certified:
Yes
Compliance:
Protecction against electric shock Class I
CONNECTIVITY & INSTALLATION
Authorisation:
RFID/App
Status indication / HMI:
LED
WLAN communication:
Lan RJ45, 2.4G Wi-Fi, RS485, RFID
