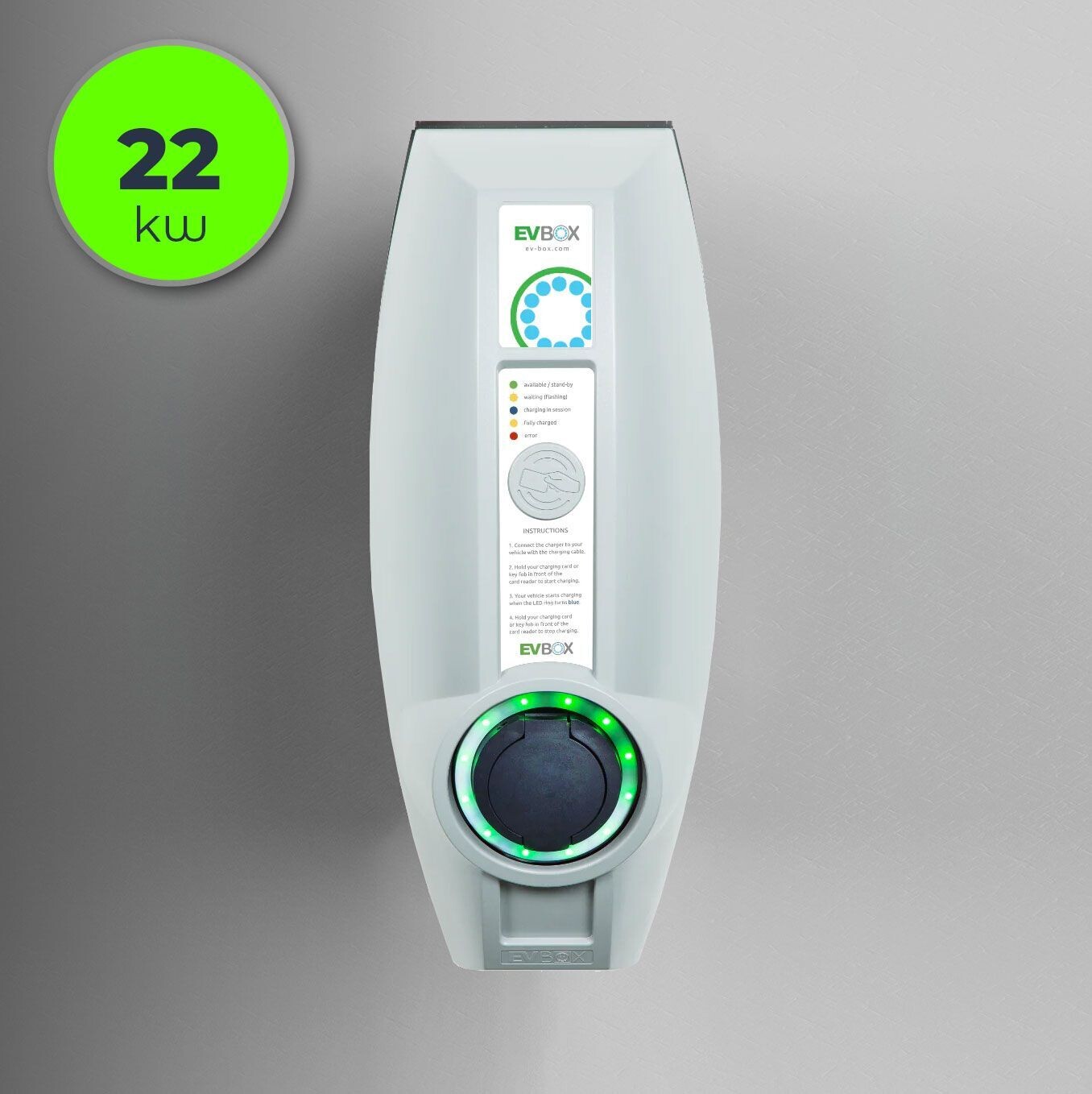

EVBox - BusinessLine - Single - 22 kW - SATELLITE
EVBox Business Line is their best selling charger for Commercial (Fleet & Customers), Multi-Residential (Apartment or Strata) or selected Government (Fleet) Applications.
Compatible with all types of EVs. This is a hub (master) charger that can support multiple satellite (slave) chargers to expand your charging capacity to have up to 20 chargers in 1 location.
SATELLITES must be grouped with at least one HUB.
- 120km range
NB: Charging Rate is dependent on Vehicle and its Battery Management System.
BENEFITS
- Satellite (slave) Charger
- Works with Hub (master) Charger
- Perfect for multi-residential
- Ideal for commercial & fleet
- Suitable for government fleet
- Compatible with all EVs
- Simple Interface & Easy to Use
- Easy to install & maintain
- Integrated billing for multi-residential, carparks and commercial applications
- EVBOX Best Selling Charging Station for Business Locations
ELECTRICAL SPECIFICATION
Charging Capacity: 22kW
Charge Mode: Mode 3 (IEC 61851-1)
Connectors: One (1)
Connector Type: Type 2 Socket
Fixed Cable Type: NA
Fixed Cable Length: NA
Connection Capacity: 3-phase (16 A or 32 A), 230V – 400V
Secondary Power Circuit:
Metering: S-Bus MID certified class B
Smart Charging: Adjusting max. current, charging profiles, dynamic load balancing (via MAX protocol)
SAFETY & CERTIFICATION
Ground Fault Detection: Integrated RCBO 16 A or 32 A, CCID 6 mA DC leakage detection per outlet
Housing Fire Rating: UL94 V-0, US-FMVSS / ISO 3795 passed, DIN 53438 F1/K1
Operating Temperature:-25°C to +50°C
Operating Humidity: Max. 95% non-condensing
Enclosure Ratings: IEC 60529 / IP55 / IK08
CE Certified: Yes
Compliance: CE certified, RED Directive 2014/53/EU, EMC Directive 2014/30/ EU, Low Voltage Directive 2014/35/EU, RoHS Directive 2011/65/ EU (as amended by 2015/863/EU), EN/IEC 61851-1 (2017), EN/ IEC 61851-21-2 (2018), EN/IEC 61000-32 (2014), EN/IEC 61000- 3-3 (2013), EN 301 489-1 V2.2.0, EN 301 489-3 V2.1.1, EN 301 489-17 V3.2.0, EN 301 489-52 V1.1.0, EN 301 908-1 V11.1.1, EN 301 511 V12.5.1, EN 300 330 V2.1.1, EN 300 328 V2.1.1, EN 301 893 V2.1.1, EN 300 220-1 V3.1.1, EN 300 220-2 V3.1.1
CONNECTIVITY & INSTALLATION
Authorisation: Keyfob/RFID/App (Multi-user)
Status indication / HMI: LED
WLAN communication: Connects to Hub
Cellular communication: Connects to Hub
Charging protocol: OCPP 1.5 S, 1.6 J
Positioning: GPS / Wi-Fi
Maximum installation height:
Smart Charging: Dynamic load balancing

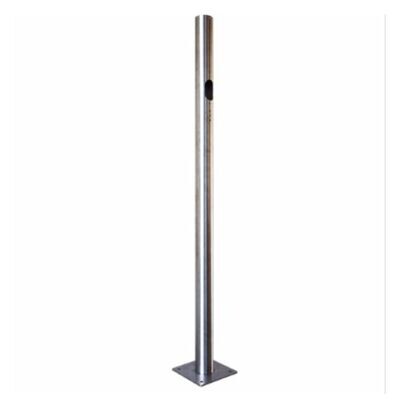

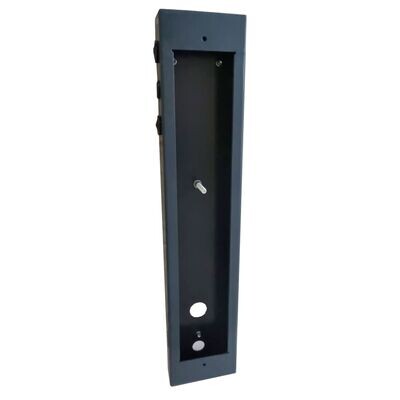

Mounting: Wall or Pole (Bracket/Pole Required)
PHYSICAL PROPERTIES
Housing: Polycarbonate
Height: 600mm
Width: 255mm
Depth: 410mm
Mounting: Wall (Bracket Required)
